Alligator Test Lead
In Stock
500RWF
In Stock

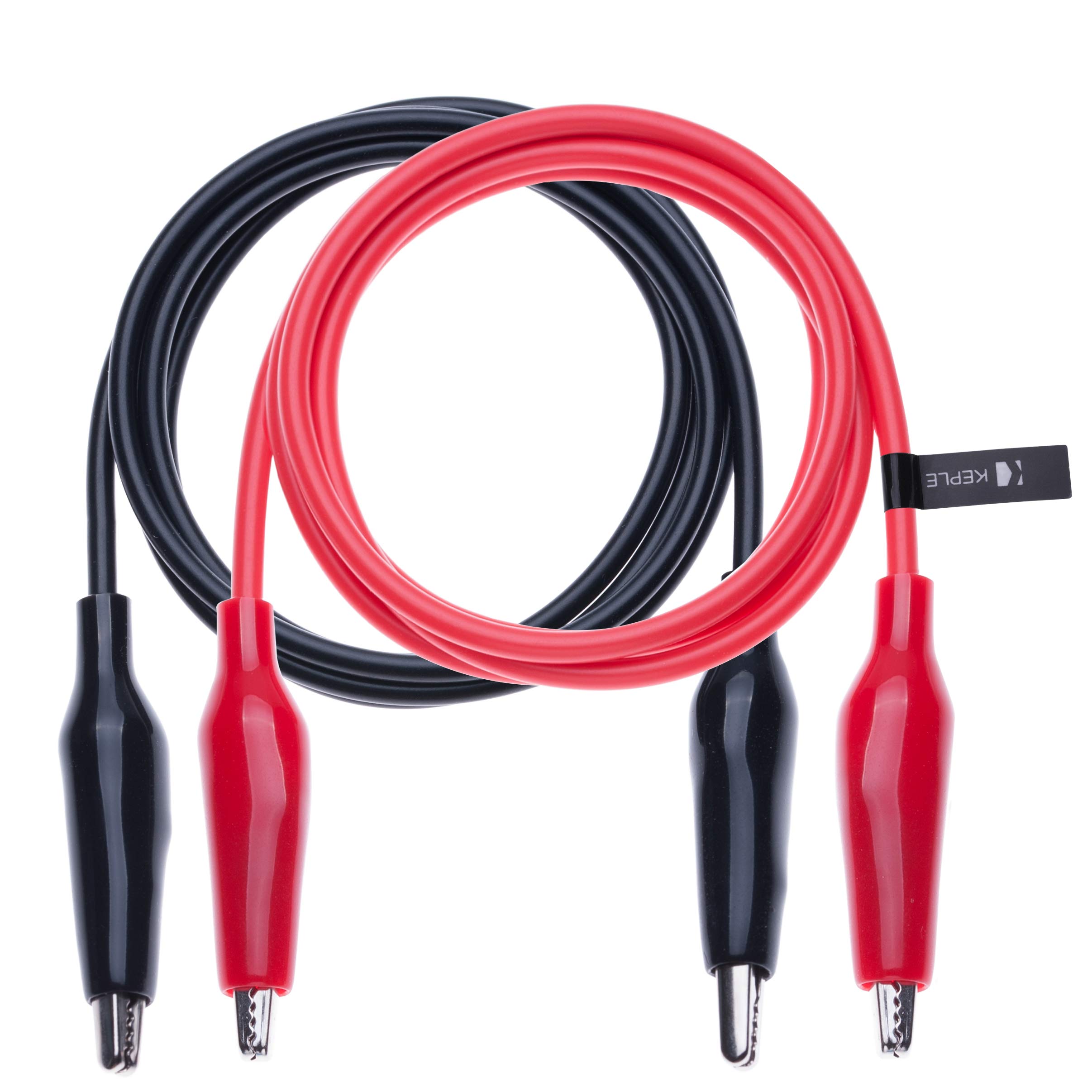

An alligator test lead is a versatile electrical cable that is designed to connect and test electrical circuits. It features alligator clips at both ends that securely grip onto components or test points. Alligator test leads are typically made of insulated wire with stranded or solid conductors, and are available in various lengths, colors, and designs. They are used in a variety of applications, such as electronics, electrical engineering, and scientific laboratories, and are commonly used to measure and test electrical parameters such as voltage, current, and resistance. Alligator test leads are an essential tool for troubleshooting and testing electrical circuits, and provide a safe and reliable way to connect and measure various electrical components.
Description
An alligator test lead is an electrical cable with alligator clips at both ends used to test and connect electrical circuits. The alligator clips are designed to easily clip onto various points in an electrical circuit, providing a secure and reliable connection.
Alligator test leads are typically made of insulated wire with stranded or solid conductors to ensure flexibility and durability. The insulation is often made of PVC or silicone to provide resistance to heat and moisture. The alligator clips are typically made of metal, such as copper, and have serrated jaws that grip onto the component securely.
Alligator test leads are commonly used in a variety of applications, such as in electronics and electrical engineering, in laboratories, and in hobbyist projects. They are useful for testing and troubleshooting circuits, connecting components to a power source, and measuring electrical parameters such as voltage, current, and resistance.
Alligator test leads come in various lengths, colors, and styles to suit different needs. Some alligator test leads may have banana plugs, spade connectors, or other types of connectors instead of alligator clips. Additionally, some alligator test leads may have specialized features, such as additional insulation or shielding, to provide protection in specific environments.
Overall, alligator test leads are a versatile and essential tool for electrical and electronic testing, allowing for easy and secure connections to components and circuits. They provide a reliable and convenient solution for measuring and testing electrical parameters and are widely used by professionals and hobbyists alike
Here are the typical specifications for an alligator test lead:
- Connector Type: Both ends of the cable have alligator clips with serrated jaws for easy and secure connections.
- Wire Gauge: The wire gauge varies depending on the application and length of the cable, but typically ranges from 18 AWG to 22 AWG.
- Length: Comes in different lengths, ranging from a few inches to several feet.
- Insulation Material: Typically made of PVC or silicone for resistance to heat and moisture.
- Voltage Rating: Typically rated for use with low to medium voltage circuits, such as up to 1000V.
- Current Rating: The maximum current carrying capacity of the cable depends on the wire gauge and length.
- Color Coding: Alligator test leads are often color-coded to easily distinguish between different circuits or components.
- Material: Alligator clips are typically made of metal, such as copper or steel.
- Max Opening Width of Jaws: The maximum width of the alligator clip jaws varies depending on the model and design.
- Temperature Rating: Alligator test leads are typically rated for use in a wide range of temperatures, such as -40°C to +105°C.
