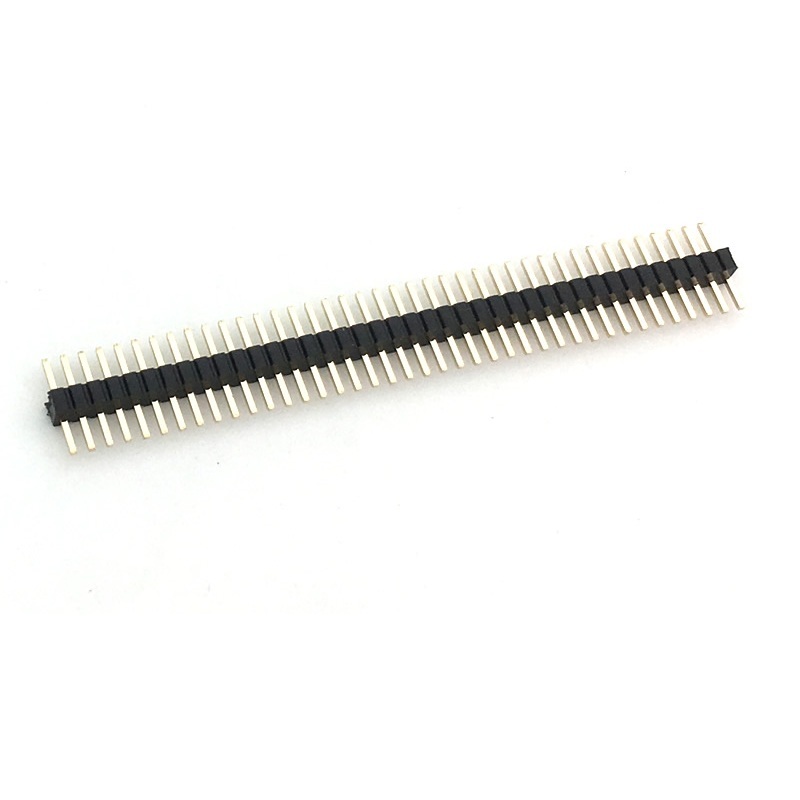

Male Single Row Pin headers
In Stock
300RWF
In Stock
Male single row pin headers are electronic connectors that consist of a single row of male pins arranged in a straight line. They are low-cost, compact, and reliable, making them a popular choice for a variety of electronic applications. They are typically used to provide a means of connecting and disconnecting components or devices in electronic circuits and come in different pin counts and pitch sizes to accommodate different PCB layouts.
Description
Male single row pin headers are electronic connectors that consist of a single row of male pins arranged in a straight line. They are typically used in electronic circuits to provide a means of connecting and disconnecting components or devices. The pins are made of metal and are usually plated with gold, tin, or other materials to enhance their conductivity and resistance to corrosion.
The pins are designed to fit into corresponding female headers, which are often found on printed circuit boards (PCBs) or other electronic devices. They are commonly available in a range of pin counts, typically from 2 to 40 pins, and come in different pitch sizes to accommodate different PCB layouts.
Here are some general specifications for male single row pin headers:
- Pin Count: Typically available in 2 to 40 pins, with even-numbered pin counts being more common. Other pin counts may be available depending on the manufacturer.
- Pitch Size: Refers to the distance between the center of one pin to the center of the adjacent pin. The most common pitch sizes for single row headers are 2.54 mm (0.1 inch) and 1.27 mm (0.05 inch). Other pitch sizes may also be available.
- Connector Type: Single row headers are available in various types such as straight, right angle, and SMT (Surface Mount Technology) depending on the application and the design requirements.
- Pin Type: The pins can be made of different materials, such as brass or phosphor bronze, and may be plated with gold, tin, or other materials to enhance their conductivity and corrosion resistance.
- Current Rating: The current rating of a header depends on the size and the material of the pins, and can range from a few milliamperes (mA) to several amperes (A).
- Voltage Rating: The voltage rating of a header depends on the insulation material and the spacing between the pins, and can range from a few volts to several hundred volts.
- Operating Temperature: The headers should be able to operate reliably within a specified temperature range, which is usually between -40°C and 105°C, or higher for some specialized applications.
- Mounting Options: Headers can be mounted on a PCB either by through-hole soldering or surface mount technology, depending on the design of the circuit.
