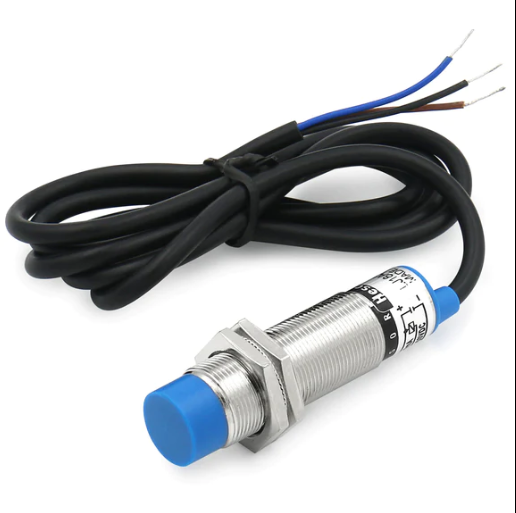

LJ18A3-8-J/EZ AC inductive Proximity Sensor switch NO AC 90-250V 400mA

LJ18A3-8-J/EZ AC inductive Proximity Sensor switch NO AC 90-250V 400mA

In Stock
7,500RWF
In Stock
Add to Wishlist
Add to Wishlist
Order on WhatsApp
Category:

The LJ18A3-8-J/EZ AC inductive proximity sensor switch is a reliable and durable device that can detect metallic objects within its sensing range without physical contact. It has a normally open (NO) output configuration, a detection distance of up to 8mm, and operates on an AC voltage range of 90-250V with a maximum current rating of 400mA. This sensor has a fast response frequency of 500Hz, can operate in temperatures ranging from -25°C to +70°C, and has an IP67 protection rating. Its built-in cable simplifies the installation process, making it an ideal choice for a variety of industrial and automation applications.

Description

The LJ18A3-8-J/EZ AC inductive proximity sensor switch is a device that can detect the presence or absence of metallic objects within its sensing range without physical contact. This sensor operates on an AC voltage range of 90-250V and has a maximum current rating of 400mA. It uses the principle of electromagnetic induction to detect metallic objects and can be used in a variety of industrial and automation applications, such as metal detection, position sensing, and speed measurement.

This sensor has a normally open (NO) output configuration, which means that the output is turned on when a metallic object is detected within the sensing range. The sensing range of this sensor is up to 8mm, which means that it can detect metallic objects up to a distance of 8mm from the sensor surface. The EZ in the model number indicates that this sensor has a built-in cable that simplifies the installation process.

Here are the specifications for the LJ18A3-8-J/EZ AC inductive proximity sensor switch:

  • Model: LJ18A3-8-J/EZ
  • Output Configuration: Normally Open (NO)
  • Detection Distance: Up to 8mm
  • Voltage Range: AC 90-250V
  • Current Rating: 400mA
  • Frequency: 50/60Hz
  • Operating Temperature: -25°C to +70°C
  • Response Frequency: 500Hz
  • Material: ABS plastic shell, copper coil
  • Cable Length: 2 meters
  • Protection Class: IP67
  • Dimensions: M18 x 70mm
  • Weight: 110g
