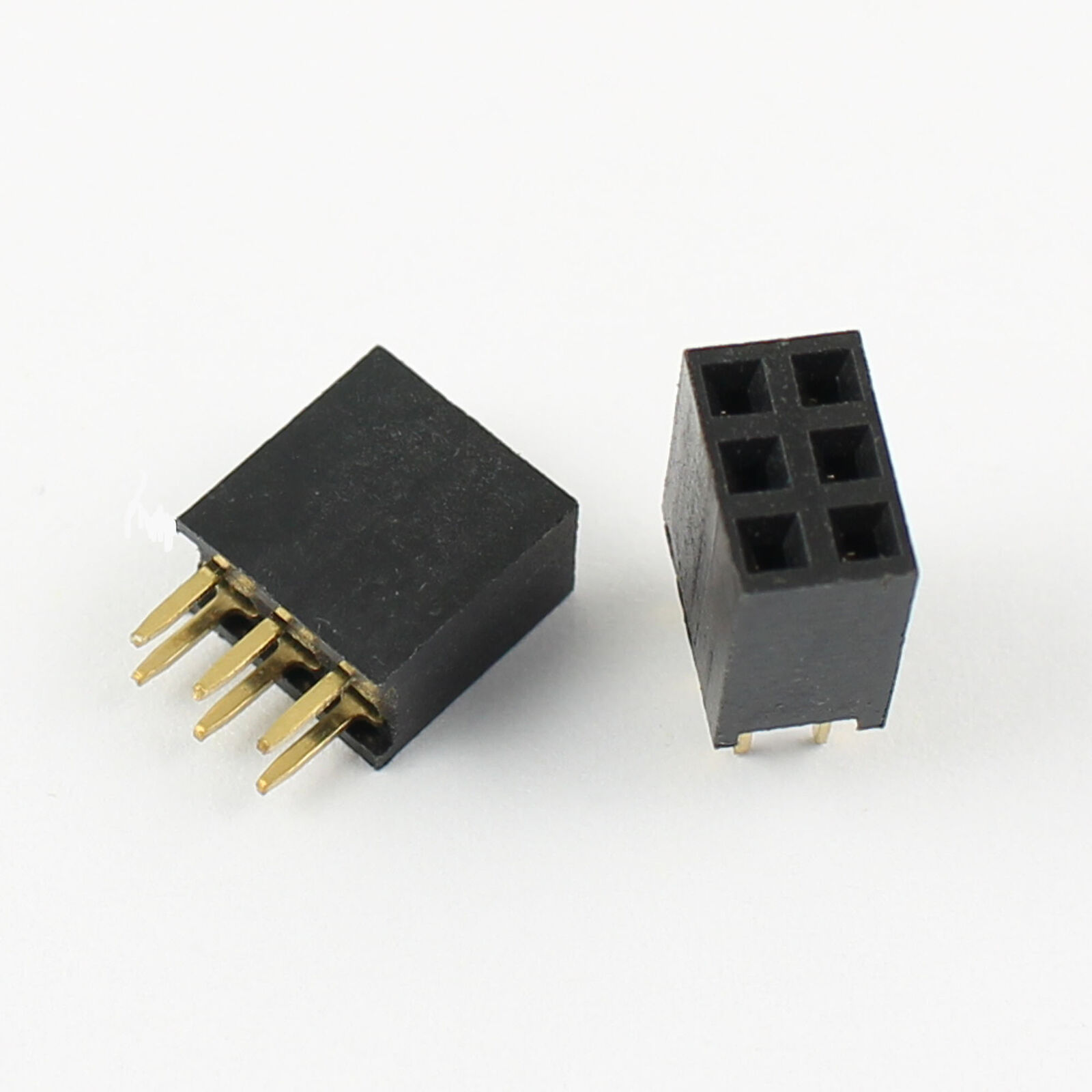

Header 2×3 (Female – 2.54mm Pitch)
In Stock
400RWF
In Stock
The Header 2×3 (Female – 2.54mm Pitch) is an electrical connector with six pins arranged in two rows, designed to receive male pins or connectors. It has a pitch of 2.54mm and is typically through-hole mounted on a printed circuit board (PCB). The contacts are made of brass or phosphor bronze and plated with gold, tin, or nickel for good electrical conductivity and corrosion resistance. The insulator is made of high-temperature plastic material such as nylon, providing good electrical insulation and mechanical stability.
Description
The Header 2×3 (Female – 2.54mm Pitch) is a type of electrical connector commonly used in electronic applications. It consists of six pins arranged in two rows with a pitch of 2.54mm, and the receptacles are designed to receive male pins or connectors. The contacts are typically made of brass or phosphor bronze, plated with a thin layer of gold, tin, or nickel, and the insulator is made of high-temperature plastic material such as nylon. The header connector can be through-hole mounted on a printed circuit board (PCB), and is RoHS compliant. This compact and reliable connector provides a secure and stable connection for various electronic applications.
The specification for this component includes the following details:
- Type: This header connector is a female type, which means it has receptacles to receive male pins or connectors.
- Pitch: The pitch of this header connector is 2.54mm, which means the distance between the center of two adjacent pins is 2.54mm.
- Number of pins: This header connector has six pins arranged in two rows, with three pins in each row.
- Contact material: The header connector contacts are typically made of brass or phosphor bronze, which are good conductors of electricity and have good durability.
- Contact plating: The contacts are plated with a thin layer of gold, tin, or nickel to prevent corrosion and ensure good electrical conductivity.
- Insulator material: The insulator of this header connector is made of a high-temperature plastic material such as nylon, which provides good electrical insulation and mechanical stability.
- Insulator color: The insulator is typically black or white, but other colors may be available.
- Operating temperature: The header connector can typically operate in a temperature range of -40°C to 105°C.
- Mounting type: The header connector can be through-hole mounted on a printed circuit board (PCB).
- Dimensions: The header connector typically has a length of 10.16mm, a width of 5.08mm, and a height of 8.13mm.
