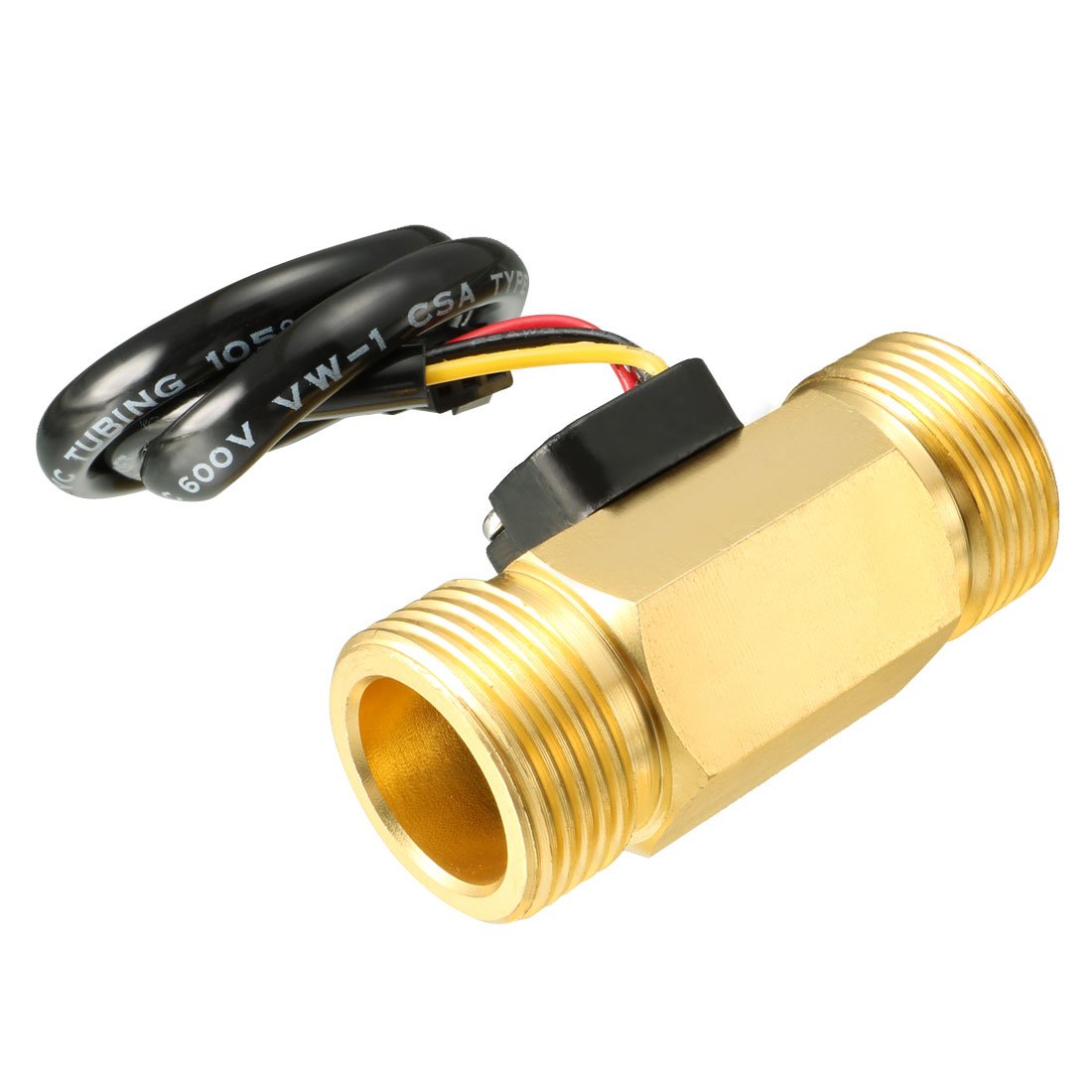

G3/4″ Thread Hall Effect Liquid Water Flow Sensor Switch Flow Meter
In Stock
13,400RWF
In Stock
The G3/4″ Thread Hall Effect Liquid Water Flow Sensor Switch Flow Meter is a compact and durable device designed for measuring the flow rate of water in industrial applications. It features a Hall effect sensor that provides analog and switch output signals, making it accurate and reliable for monitoring and controlling liquid flow. The device is easy to install and operate and is capable of withstanding harsh operating conditions.
Description
The G3/4″ Thread Hall Effect Liquid Water Flow Sensor Switch Flow Meter COM35 is a device designed to measure the flow rate of liquids such as water in various industrial applications. It is equipped with a Hall effect sensor that detects the flow of the liquid passing through the device and converts it into a proportional electrical signal.
The sensor has a G3/4″ thread connection that allows it to be easily installed into piping systems. The sensor’s compact size makes it ideal for use in tight spaces and applications where space is limited. The COM35 flow meter has a maximum flow rate of 30 liters per minute and is capable of detecting flow rates as low as 1 liter per minute.
This flow meter is designed to be durable and long-lasting, with a rugged construction that can withstand harsh operating conditions. The device is made of high-quality materials that are resistant to corrosion and wear, ensuring that it can operate reliably over an extended period of time.
The G3/4″ Thread Hall Effect Liquid Water Flow Sensor Switch Flow Meter COM35 is easy to install and operate. It comes with a user manual that provides detailed instructions on how to set up and use the device. The flow meter can be connected to a control system or a display unit to monitor and control the flow of liquids accurately.
the specifications of the G3/4" Thread Hall Effect Liquid Water Flow Sensor Switch Flow Meter:
- Thread size: G3/4" (female)
- Maximum flow rate: 30 liters per minute (LPM)
- Minimum flow rate: 1 LPM
- Operating voltage: 5V DC to 18V DC
- Output signal: Hall effect sensor with analog output (0-5V DC) and switch output (NPN open collector)
- Accuracy: ±5%
- Operating temperature range: 0°C to 80°C
- Operating pressure range: 0 to 1.75 MPa (250 psi)
- Wetted materials: Stainless steel, brass, PTFE, and EPDM
- Cable length: 1 meter (3.3 feet)
- Dimensions: 70mm x 37mm x 34mm (2.76" x 1.46" x 1.34")
- Weight: 130g (4.59 oz)
