30A range Current Sensor Module ACS712 Module
In Stock
6,500RWF
In Stock
The 30A range Current Sensor Module ACS712 Module is a low-cost, compact module used for measuring DC and AC currents up to 30A. It is based on the ACS712 Hall Effect current sensor chip and outputs an analog voltage signal proportional to the measured current. The module has a built-in overcurrent protection feature, operates on a 5V power supply, and is commonly used in robotics, motor control, and power supply monitoring applications.
Description
The 30A range Current Sensor Module ACS712 Module is a small, low-cost module used for measuring DC and AC currents up to 30A. The module is based on the ACS712 Hall Effect current sensor chip, which provides a precise and reliable measurement of current.

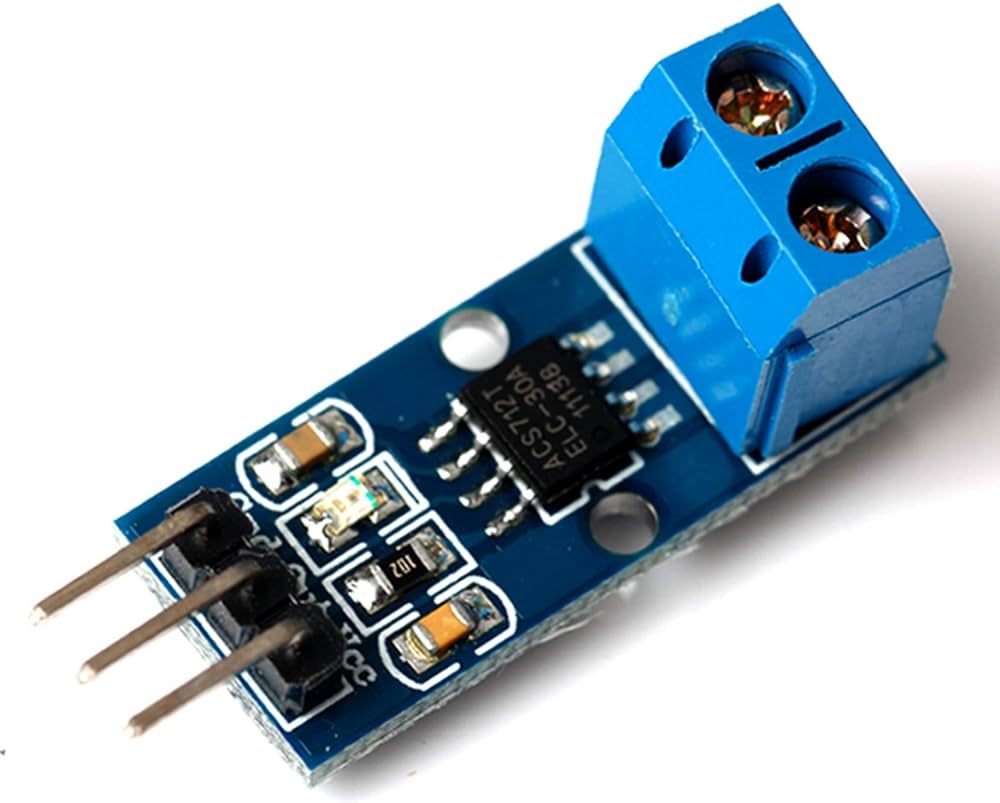

The module consists of a small PCB with the ACS712 chip mounted on it, along with other components such as a filtering capacitor, and a pin header for easy connection to other circuits. The module operates on a 5V power supply and outputs an analog voltage signal proportional to the measured current.
The module has a sensitivity of 66mV/A, which means that for every ampere of current passing through the sensor, the module will output 66mV of voltage. This makes it easy to convert the voltage output of the module into a current reading using a simple formula.
the specifications for the 30A range Current Sensor Module ACS712 Module:
- Operating voltage: 5V DC
- Measuring range: -30A to +30A
- Sensitivity: 66mV/A
- Output voltage: 0.5V to 4.5V DC (linear output)
- Accuracy: +/- 1.5%
- Bandwidth: DC to 80kHz
- Overcurrent protection: Built-in, output voltage limited to 5V DC when current exceeds the specified range
- Operating temperature: -40°C to +85°C
- Dimensions: 31mm x 13mm x 7mm
- Weight: 3g
The module also has a pin header for easy connection to other circuits, and a filtering capacitor to improve stability and reduce noise in the output signal. The module is compatible with microcontrollers and other electronic circuits, and can be easily integrated into a variety of projects.
